Chiller Room Service
Chiller rooms — 0°C to +8°C for dairy, beverages and packed food
- 80 / 100 mm PUF
- Daikin scroll units
- Energy-efficient compressors
- Hygienic, washable interior
Typical applications
Operating Temperature
0°C to +8°C
Relative Humidity
70–85% RH
Engineering note
Holding, not freezing. For −18°C see Freezer Room.
Technical Specifications & Construction
Every chiller room we build follows the same engineering discipline — sized to your load, not picked off a brochure. Specifications below reflect typical HyperCold builds.
- Panel thickness
- 80 mm
- PUF panel density
- 40 ± 2 kg/m³ (CFC-free polyurethane)
- Skin
- 0.5 mm PPGL / GI pre-coated steel both sides
- Joinery
- Cam-lock with EPDM gaskets
- Refrigeration
- Daikin / Bitzer / Emerson scroll or screw
- Controls
- Carel / Danfoss digital with data-logger
How HyperCold Designs This Cold Room
These are the design factors we lock down before quoting. Skip any of these and the project either runs hot, drinks electricity, or under-delivers on shelf life.
Even airflow
Critical for packed food and bottled beverages to avoid hot spots.
Hygienic finishes
Pre-coated PPGL skin, food-grade gaskets and washable surfaces.
Door selection
Hinged for low traffic, sliding for high-traffic kitchens with air curtain option.
What Drives the Project Cost
We don't quote square-foot rates — every build is BOQ-priced. The factors below decide where your project lands within a realistic range.
- 01Room volume (CFT) and panel thickness
- 02Target temperature band and ambient design conditions
- 03Refrigeration brand and capacity (TR)
- 04Floor type (PUF + chequered Al vs heated)
- 05Door type, ante room, electrical and DG backup
- 06Civil work and site readiness (Extra)
Why Operators Choose HyperCold
Engineered, not assembled
Heat-load, airflow, panel thickness and refrigeration sized for your commodity and site.
Line-item BOQ
Transparent panel, refrigeration, accessory, installation and AMC pricing — no lump-sum surprises.
Pan-India delivery
Manufactured at Sirsaganj, Firozabad; installed across India with regional service support.
Subsidy-ready DPR
Documentation aligned to NHB, MIDH, MoFPI, AIF and state scheme norms.
Project Process — Enquiry to Handover
- 1
Step 1
Site & commodity discovery
Capacity, commodity, temperature, ambient, power and site access.
- 2
Step 2
Heat-load & BOQ
Engineered heat-load, panel and refrigeration sizing, line-item BOQ.
- 3
Step 3
Fabrication & dispatch
PUF panel manufacturing at our Firozabad plant, packaged for pan-India dispatch.
- 4
Step 4
Installation & commissioning
On-site panel erection, refrigeration installation, leak test, pull-down and handover.
- 5
Step 5
AMC & uptime
Annual maintenance contract with response SLA and spares planning.
Scope split — what we deliver, what your site provides
Clear scope upfront avoids the most common project-cost surprises. Items marked "subject to" are finalised after technical site evaluation.
HyperCold scope
- Heat-load and refrigeration sizing (BOQ-based)
- PUF panel manufacturing at our Firozabad plant
- Refrigeration unit supply, piping, charging and leak test
- On-site panel erection, door fitting and commissioning
- Control panel, sensors and data-logger (where applicable)
- Operator handover, AMC kick-off and warranty documentation
Client / site scope
- Civil work — floor, walls, foundation, plinth (subject to final site inspection)
- 3-phase electrical supply up to the project room (load to be confirmed after technical evaluation)
- Earthing pit, MCB / RCCB at the LT panel side
- Water supply for installation and cleaning
- Site access — crane / hydra movement, internal pathway and unloading zone
- Any local permissions (fire NOC, FSSAI, pollution clearance) — subject to scheme guidelines
Common mistakes we help clients avoid
Most of these surface only after commissioning, when fixes are expensive. Catching them at quotation stage protects both shelf life and capex.
Sizing the room on square feet, not on heat load
Two rooms of the same size can need very different TR depending on commodity, ambient, door openings and infiltration. Always insist on a heat-load worksheet.
Skipping the ante room to save cost
An ante room cuts heat ingress on every door open and reduces ice formation on the evaporator — savings on electricity usually recover the capex.
Under-sizing electrical supply or skipping DG backup
Cold rooms run year-round. A weak LT supply or no DG plan turns every grid outage into a spoilage event.
Treating subsidy as a guarantee
Subsidy eligibility depends on project type, beneficiary category, scheme notification and department verification. Plan financials independent of subsidy approval.

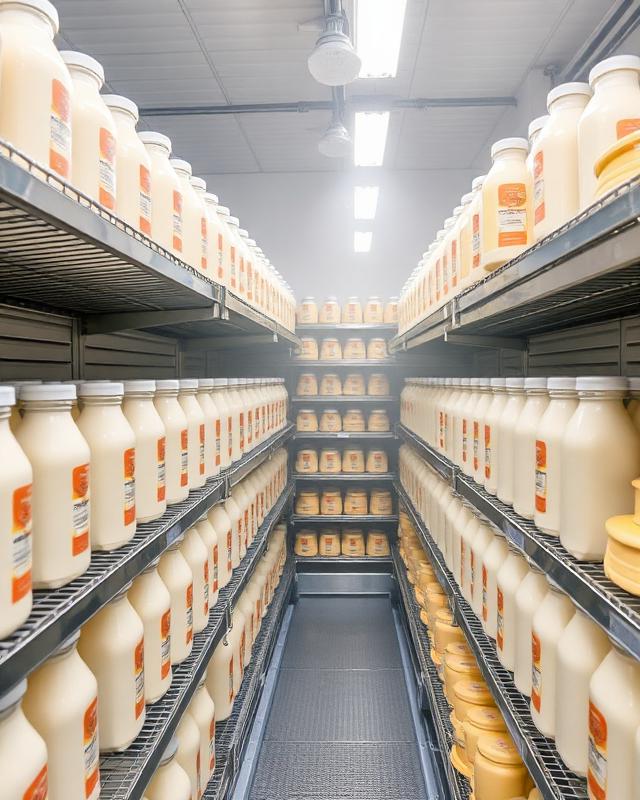

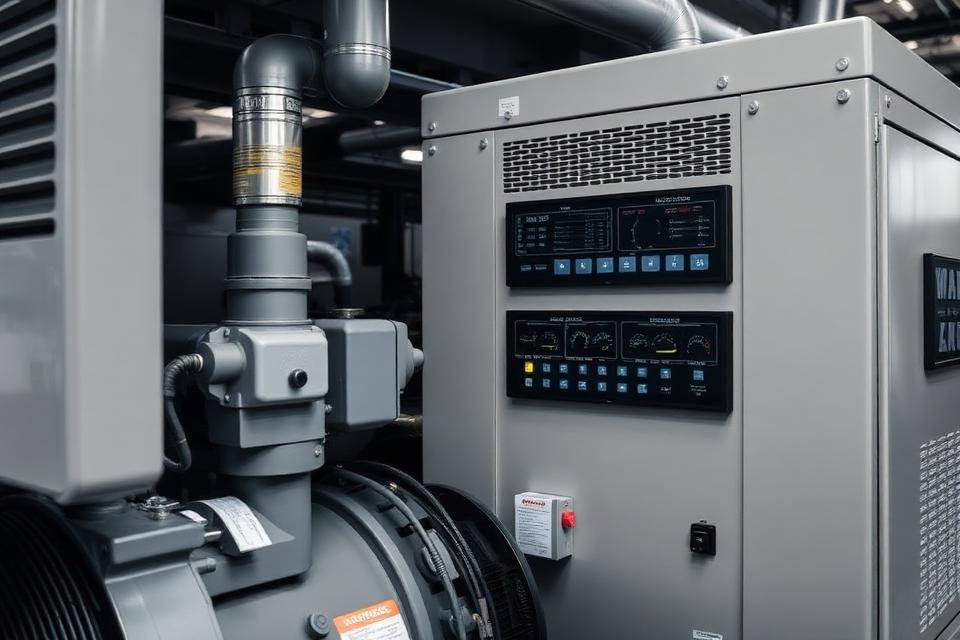

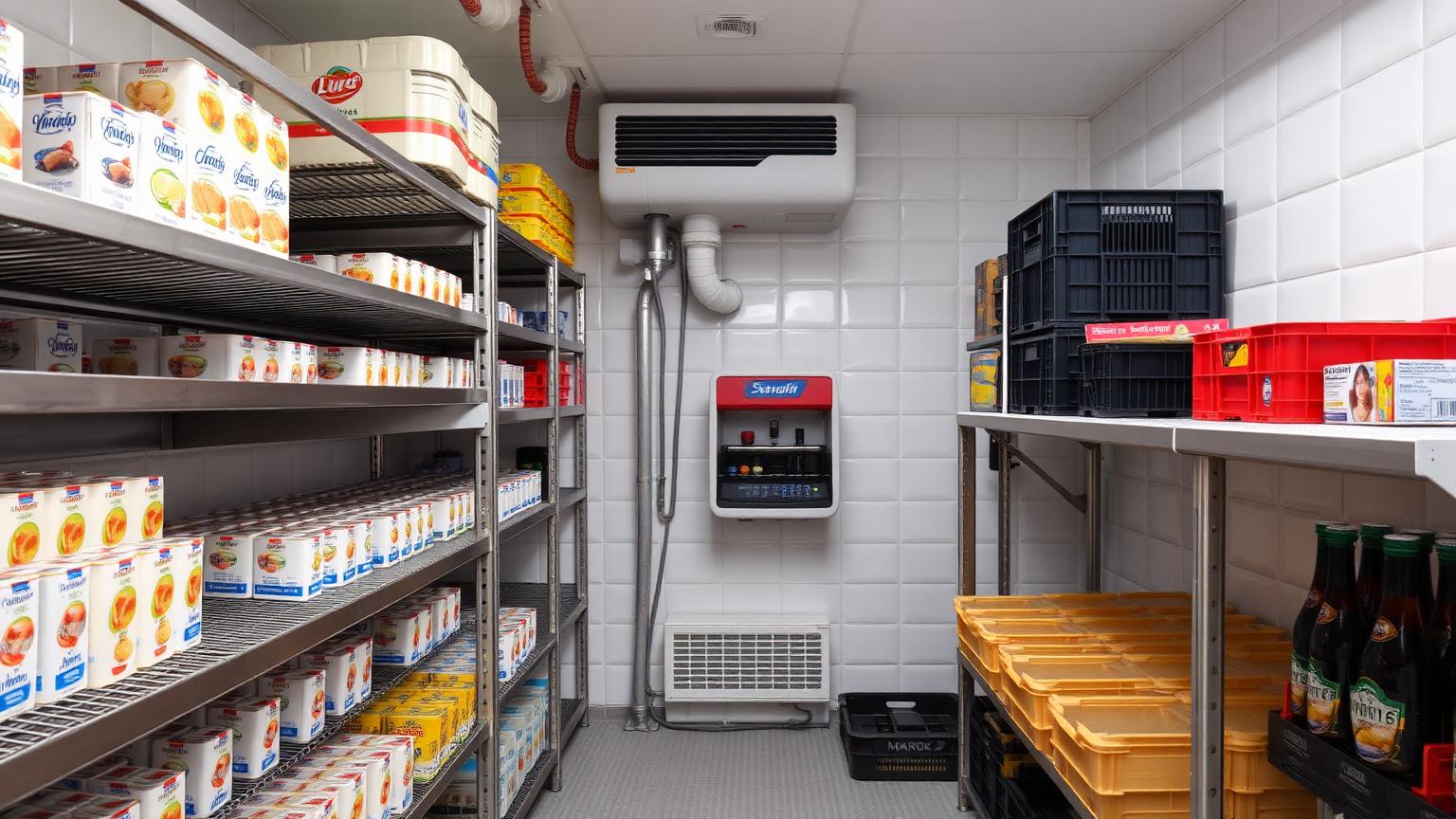

Reference visuals & build photos
Indicative engineering visuals — actual build configuration depends on commodity, capacity and site.
How HyperCold Chiller Room compares
Indicative comparison between a typical local fabricator approach and an engineered HyperCold build. Final scope is confirmed after site inspection.
| Build factor | Typical local fabricator | HyperCold engineered |
|---|---|---|
| Sizing basis | Square-feet thumb rule | Heat-load worksheet per commodity & ambient |
| Panel & skin | Generic PUF, mixed skin | PPGL / GI both sides, 40 ± 2 kg/m³ PUF, cam-lock |
| Refrigeration | Locally sourced, no brand commitment | Daikin / Bitzer / Emerson — sized to TR |
| Documentation | Single-line quote | Line-item BOQ + DPR aligned to subsidy norms |
| Controls & data | Mechanical thermostat | Carel / Danfoss digital with data-logger |
| Handover & AMC | Verbal warranty | Written warranty, SLA-backed AMC, spares planning |
Frequently Asked Questions
Subsidies & finance that may apply
Eligibility depends on project type, applicant category, state and current government notification. Below is indicative — verify with the official scheme portal before applying.
PMFME — Micro Food Processing
Credit-linked subsidy for micro food processing units including small cold rooms.
Read scheme detailsMoFPI Integrated Cold Chain (PMKSY)
Grant-in-aid for integrated pre-cooling, IQF, blast freezing, CA and reefer logistics.
Read scheme detailsState Subsidy Schemes
State Horticulture, Food Processing, SC/ST and SHG components vary by state action plan.
Read scheme detailsMSME & Bank Finance (CGTMSE, SIDBI, NABARD)
Term loan and working capital options via scheduled banks, SIDBI, NABARD and cooperatives.
Read scheme detailsReady to scope your chiller room?
Share your product, room size, and target temperature. We'll send a BOQ-priced quote with PUF, refrigeration, installation, and AMC — pan-India delivery from Sirsaganj, Firozabad.
