Fresh Meat Chiller Service
Fresh meat chiller room — −1°C to +2°C holding
- Hygienic, washable surfaces
- Floor drainage gradient
- Ante room recommended
- Optional SS racks
Typical applications
Operating Temperature
−1°C to +2°C
Relative Humidity
85–90% RH
Engineering note
Holding, not freezing. For freezing use Blast Freezer or Freezer Room.
Technical Specifications & Construction
Every fresh meat chiller room we build follows the same engineering discipline — sized to your load, not picked off a brochure. Specifications below reflect typical HyperCold builds.
- Panel thickness
- 100 mm
- PUF panel density
- 40 ± 2 kg/m³ (CFC-free polyurethane)
- Skin
- 0.5 mm PPGL / GI pre-coated steel both sides
- Joinery
- Cam-lock with EPDM gaskets
- Refrigeration
- Daikin / Bitzer / Emerson scroll or screw
- Controls
- Carel / Danfoss digital with data-logger
How HyperCold Designs This Cold Room
These are the design factors we lock down before quoting. Skip any of these and the project either runs hot, drinks electricity, or under-delivers on shelf life.
Hygiene-first finishes
PPGL skin, food-grade gasket, sealed joints, washable floor and slope-to-drain.
Ante room
Reduces heat ingress and improves stability when handlers enter often.
Air movement
Gentle, even airflow to prevent surface drying and discolouration.
What Drives the Project Cost
We don't quote square-foot rates — every build is BOQ-priced. The factors below decide where your project lands within a realistic range.
- 01Room volume (CFT) and panel thickness
- 02Target temperature band and ambient design conditions
- 03Refrigeration brand and capacity (TR)
- 04Floor type (PUF + chequered Al vs heated)
- 05Door type, ante room, electrical and DG backup
- 06Civil work and site readiness (Extra)
Why Operators Choose HyperCold
Engineered, not assembled
Heat-load, airflow, panel thickness and refrigeration sized for your commodity and site.
Line-item BOQ
Transparent panel, refrigeration, accessory, installation and AMC pricing — no lump-sum surprises.
Pan-India delivery
Manufactured at Sirsaganj, Firozabad; installed across India with regional service support.
Subsidy-ready DPR
Documentation aligned to NHB, MIDH, MoFPI, AIF and state scheme norms.
Project Process — Enquiry to Handover
- 1
Step 1
Site & commodity discovery
Capacity, commodity, temperature, ambient, power and site access.
- 2
Step 2
Heat-load & BOQ
Engineered heat-load, panel and refrigeration sizing, line-item BOQ.
- 3
Step 3
Fabrication & dispatch
PUF panel manufacturing at our Firozabad plant, packaged for pan-India dispatch.
- 4
Step 4
Installation & commissioning
On-site panel erection, refrigeration installation, leak test, pull-down and handover.
- 5
Step 5
AMC & uptime
Annual maintenance contract with response SLA and spares planning.
Scope split — what we deliver, what your site provides
Clear scope upfront avoids the most common project-cost surprises. Items marked "subject to" are finalised after technical site evaluation.
HyperCold scope
- Heat-load and refrigeration sizing (BOQ-based)
- PUF panel manufacturing at our Firozabad plant
- Refrigeration unit supply, piping, charging and leak test
- On-site panel erection, door fitting and commissioning
- Control panel, sensors and data-logger (where applicable)
- Operator handover, AMC kick-off and warranty documentation
Client / site scope
- Civil work — floor, walls, foundation, plinth (subject to final site inspection)
- 3-phase electrical supply up to the project room (load to be confirmed after technical evaluation)
- Earthing pit, MCB / RCCB at the LT panel side
- Water supply for installation and cleaning
- Site access — crane / hydra movement, internal pathway and unloading zone
- Any local permissions (fire NOC, FSSAI, pollution clearance) — subject to scheme guidelines
- Slope-to-drain flooring and SS gully (final levels subject to site inspection)
- FSSAI and local meat-shop / abattoir licences — project-specific
Common mistakes we help clients avoid
Most of these surface only after commissioning, when fixes are expensive. Catching them at quotation stage protects both shelf life and capex.
Trying to freeze meat in a chiller
A fresh-meat chiller holds at −1°C to +2°C — it cannot freeze product. For frozen meat you need a freezer room (−18°C) or a blast freezer for freezing-down.
No ante room and no strip curtain
High door-traffic for meat handling without a buffer pulls the room temperature up, causes ice on the evaporator and shortens compressor life.
Under-sizing electrical supply or skipping DG backup
Cold rooms run year-round. A weak LT supply or no DG plan turns every grid outage into a spoilage event.
Treating subsidy as a guarantee
Subsidy eligibility depends on project type, beneficiary category, scheme notification and department verification. Plan financials independent of subsidy approval.

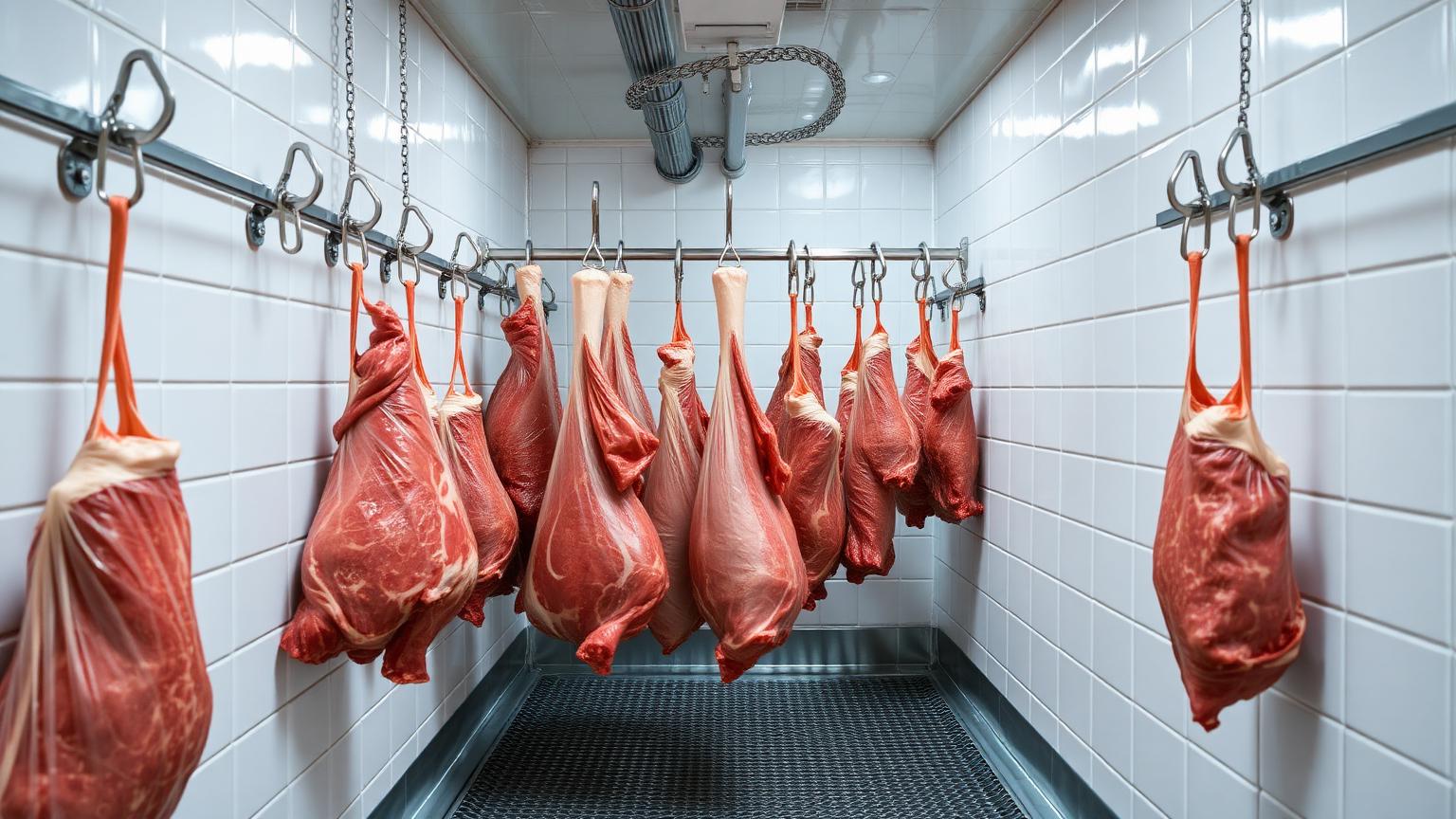

Reference visuals & build photos
Indicative engineering visuals — actual build configuration depends on commodity, capacity and site.
How HyperCold Fresh Meat Chiller Room compares
Indicative comparison between a typical local fabricator approach and an engineered HyperCold build. Final scope is confirmed after site inspection.
| Build factor | Typical local fabricator | HyperCold engineered |
|---|---|---|
| Sizing basis | Square-feet thumb rule | Heat-load worksheet per commodity & ambient |
| Panel & skin | Generic PUF, mixed skin | PPGL / GI both sides, 40 ± 2 kg/m³ PUF, cam-lock |
| Refrigeration | Locally sourced, no brand commitment | Daikin / Bitzer / Emerson — sized to TR |
| Documentation | Single-line quote | Line-item BOQ + DPR aligned to subsidy norms |
| Controls & data | Mechanical thermostat | Carel / Danfoss digital with data-logger |
| Handover & AMC | Verbal warranty | Written warranty, SLA-backed AMC, spares planning |
Frequently Asked Questions
Subsidies & finance that may apply
Eligibility depends on project type, applicant category, state and current government notification. Below is indicative — verify with the official scheme portal before applying.
MoFPI Integrated Cold Chain (PMKSY)
Grant-in-aid for integrated pre-cooling, IQF, blast freezing, CA and reefer logistics.
Read scheme detailsAgriculture Infrastructure Fund (AIF)
Interest subvention and credit guarantee on bank term loans for post-harvest infrastructure.
Read scheme detailsPMFME — Micro Food Processing
Credit-linked subsidy for micro food processing units including small cold rooms.
Read scheme detailsMSME & Bank Finance (CGTMSE, SIDBI, NABARD)
Term loan and working capital options via scheduled banks, SIDBI, NABARD and cooperatives.
Read scheme detailsReady to scope your fresh meat chiller room?
Share your product, room size, and target temperature. We'll send a BOQ-priced quote with PUF, refrigeration, installation, and AMC — pan-India delivery from Sirsaganj, Firozabad.
