Blast Freezer Service
Blast freezers — rapid freezing of fresh product
- Air temperature −35°C to −40°C
- Batch sizes 500 kg to 5 T
- High-velocity airflow
- Trolley / rack loading
Typical applications
Operating Temperature
Air: −35°C to −40°C; Product core: −18°C (target)
Relative Humidity
Not controlled
Technical Specifications & Construction
Every blast freezer we build follows the same engineering discipline — sized to your load, not picked off a brochure. Specifications below reflect typical HyperCold builds.
- Panel thickness
- 150 mm
- Airflow
- Velocity tuned to product thickness
- PUF panel density
- 40 ± 2 kg/m³ (CFC-free polyurethane)
- Skin
- 0.5 mm PPGL / GI pre-coated steel both sides
- Joinery
- Cam-lock with EPDM gaskets
- Refrigeration
- Daikin / Bitzer / Emerson scroll or screw
- Controls
- Carel / Danfoss digital with data-logger
How HyperCold Designs This Cold Room
These are the design factors we lock down before quoting. Skip any of these and the project either runs hot, drinks electricity, or under-delivers on shelf life.
Air temperature vs product core
Blast freezing aims at core temperature, not just air. Cycle time = function of product thickness and starting temperature.
Velocity and airflow uniformity
High velocity required to break the boundary layer at product surface for true rapid freezing.
Trolley / rack loading
Batch size and loading pattern must match airflow design to avoid stratification.
What Drives the Project Cost
We don't quote square-foot rates — every build is BOQ-priced. The factors below decide where your project lands within a realistic range.
- 01Batch size (kg/cycle)
- 02Product thickness
- 03Number of trolleys/racks
- 04Refrigeration brand & capacity (TR)
- 05Floor type (PUF + chequered Al vs heated)
- 06Door type, ante room, electrical and DG backup
- 07Civil work and site readiness (Extra)
Why Operators Choose HyperCold
Engineered, not assembled
Heat-load, airflow, panel thickness and refrigeration sized for your commodity and site.
Line-item BOQ
Transparent panel, refrigeration, accessory, installation and AMC pricing — no lump-sum surprises.
Pan-India delivery
Manufactured at Sirsaganj, Firozabad; installed across India with regional service support.
Subsidy-ready DPR
Documentation aligned to NHB, MIDH, MoFPI, AIF and state scheme norms.
Project Process — Enquiry to Handover
- 1
Step 1
Site & commodity discovery
Capacity, commodity, temperature, ambient, power and site access.
- 2
Step 2
Heat-load & BOQ
Engineered heat-load, panel and refrigeration sizing, line-item BOQ.
- 3
Step 3
Fabrication & dispatch
PUF panel manufacturing at our Firozabad plant, packaged for pan-India dispatch.
- 4
Step 4
Installation & commissioning
On-site panel erection, refrigeration installation, leak test, pull-down and handover.
- 5
Step 5
AMC & uptime
Annual maintenance contract with response SLA and spares planning.
Scope split — what we deliver, what your site provides
Clear scope upfront avoids the most common project-cost surprises. Items marked "subject to" are finalised after technical site evaluation.
HyperCold scope
- Heat-load and refrigeration sizing (BOQ-based)
- PUF panel manufacturing at our Firozabad plant
- Refrigeration unit supply, piping, charging and leak test
- On-site panel erection, door fitting and commissioning
- Control panel, sensors and data-logger (where applicable)
- Operator handover, AMC kick-off and warranty documentation
Client / site scope
- Civil work — floor, walls, foundation, plinth (subject to final site inspection)
- 3-phase electrical supply up to the project room (load to be confirmed after technical evaluation)
- Earthing pit, MCB / RCCB at the LT panel side
- Water supply for installation and cleaning
- Site access — crane / hydra movement, internal pathway and unloading zone
- Any local permissions (fire NOC, FSSAI, pollution clearance) — subject to scheme guidelines
Common mistakes we help clients avoid
Most of these surface only after commissioning, when fixes are expensive. Catching them at quotation stage protects both shelf life and capex.
Confusing air temperature with core temperature
A blast freezer at −35°C air does not mean the product core is at −18°C. Freezing time depends on product thickness, inlet temperature and packaging — project-specific.
Loading beyond design batch
Overloading a blast freezer extends cycle time, leaves the centre of the load warm, and damages product texture from slow ice-crystal growth.
Under-sizing electrical supply or skipping DG backup
Cold rooms run year-round. A weak LT supply or no DG plan turns every grid outage into a spoilage event.
Treating subsidy as a guarantee
Subsidy eligibility depends on project type, beneficiary category, scheme notification and department verification. Plan financials independent of subsidy approval.

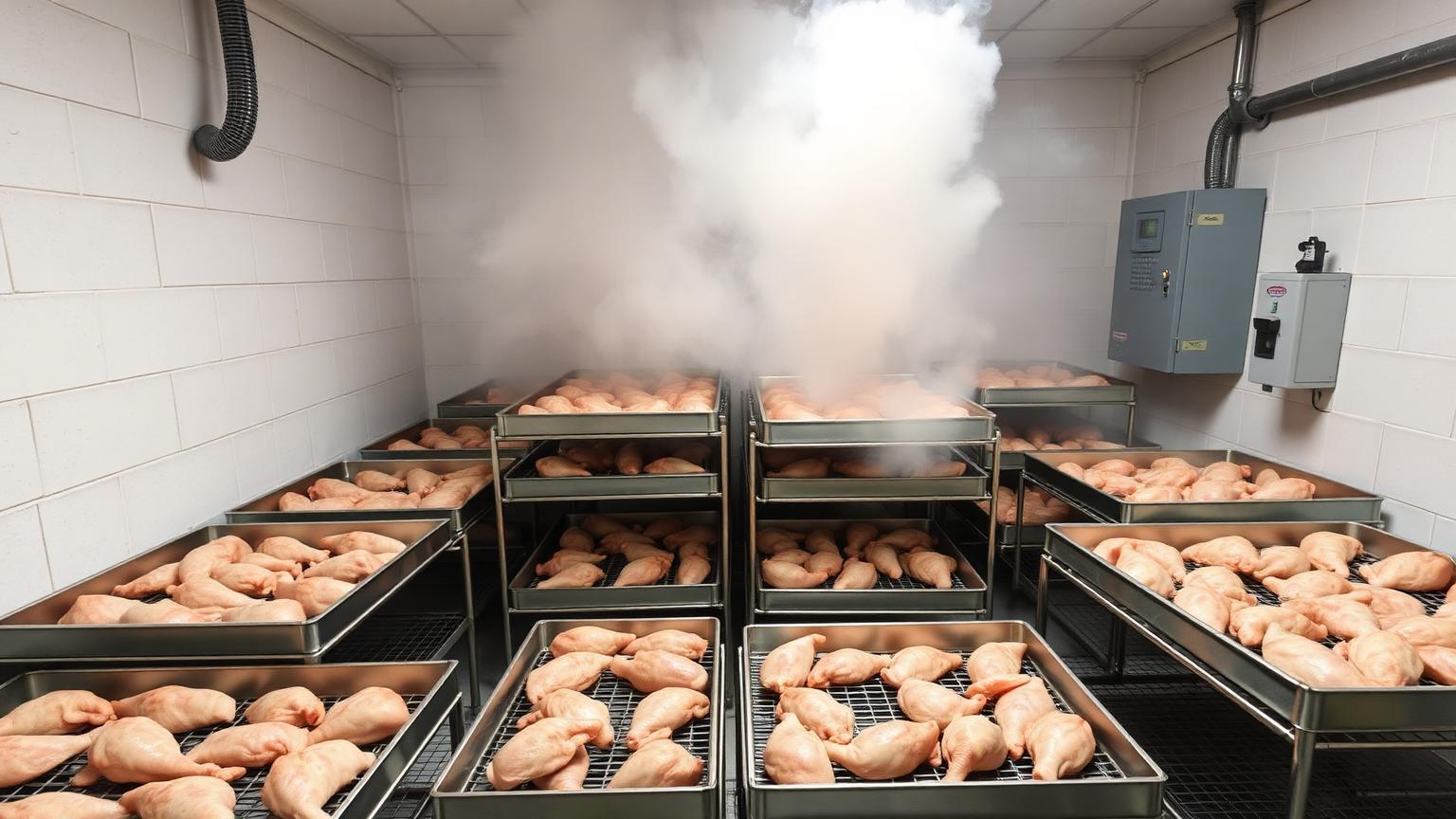

Reference visuals & build photos
Indicative engineering visuals — actual build configuration depends on commodity, capacity and site.
How HyperCold Blast Freezer compares
Blast freezing is a process, not a temperature — design must hit core temperature inside cycle time.
| Build factor | Walk-in freezer used as blast | HyperCold blast freezer |
|---|---|---|
| Air-off temperature | −18 to −22°C | −30 to −40°C |
| Air velocity over product | Low / undefined | 3–6 m/s engineered airflow |
| Cycle time | Slow — risks slow ice crystals | Sized to hit core −18°C in target hours |
| Refrigeration | Holding compressor | High-pull-down low-temp compressor / screw |
| Batch handling | Static stacking | Trolley / rack loading for repeatable cycles |
Frequently Asked Questions
Subsidies & finance that may apply
Eligibility depends on project type, applicant category, state and current government notification. Below is indicative — verify with the official scheme portal before applying.
MoFPI Integrated Cold Chain (PMKSY)
Grant-in-aid for integrated pre-cooling, IQF, blast freezing, CA and reefer logistics.
Read scheme detailsAgriculture Infrastructure Fund (AIF)
Interest subvention and credit guarantee on bank term loans for post-harvest infrastructure.
Read scheme detailsPMFME — Micro Food Processing
Credit-linked subsidy for micro food processing units including small cold rooms.
Read scheme detailsMSME & Bank Finance (CGTMSE, SIDBI, NABARD)
Term loan and working capital options via scheduled banks, SIDBI, NABARD and cooperatives.
Read scheme detailsReady to scope your blast freezer?
Share your product, room size, and target temperature. We'll send a BOQ-priced quote with PUF, refrigeration, installation, and AMC — pan-India delivery from Sirsaganj, Firozabad.
